Fermi-Dirac Distribution

physicsstatistical-mechanicsFermi-Diracdistribution-functionstemperaturepgfplotscetztikz

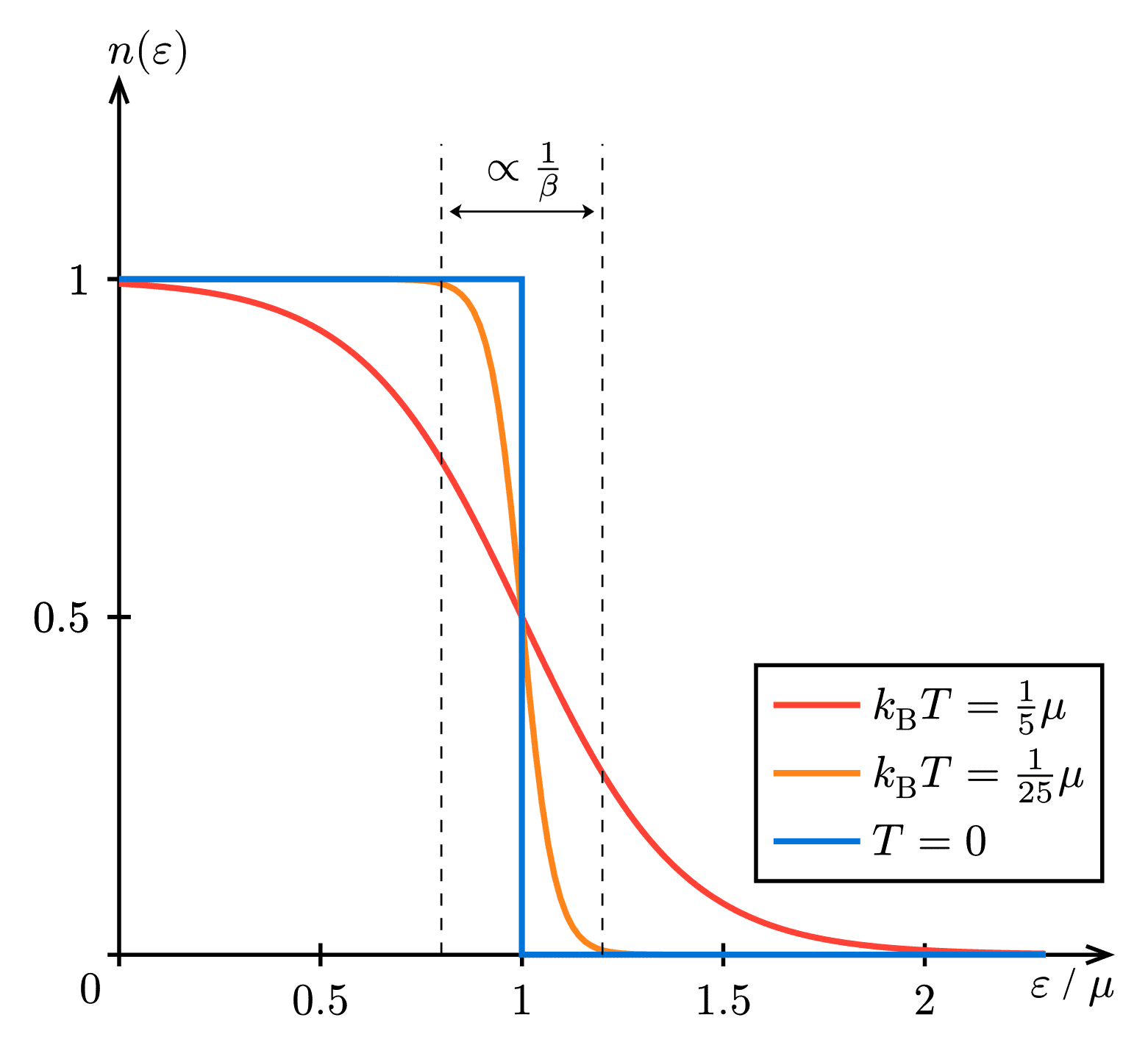

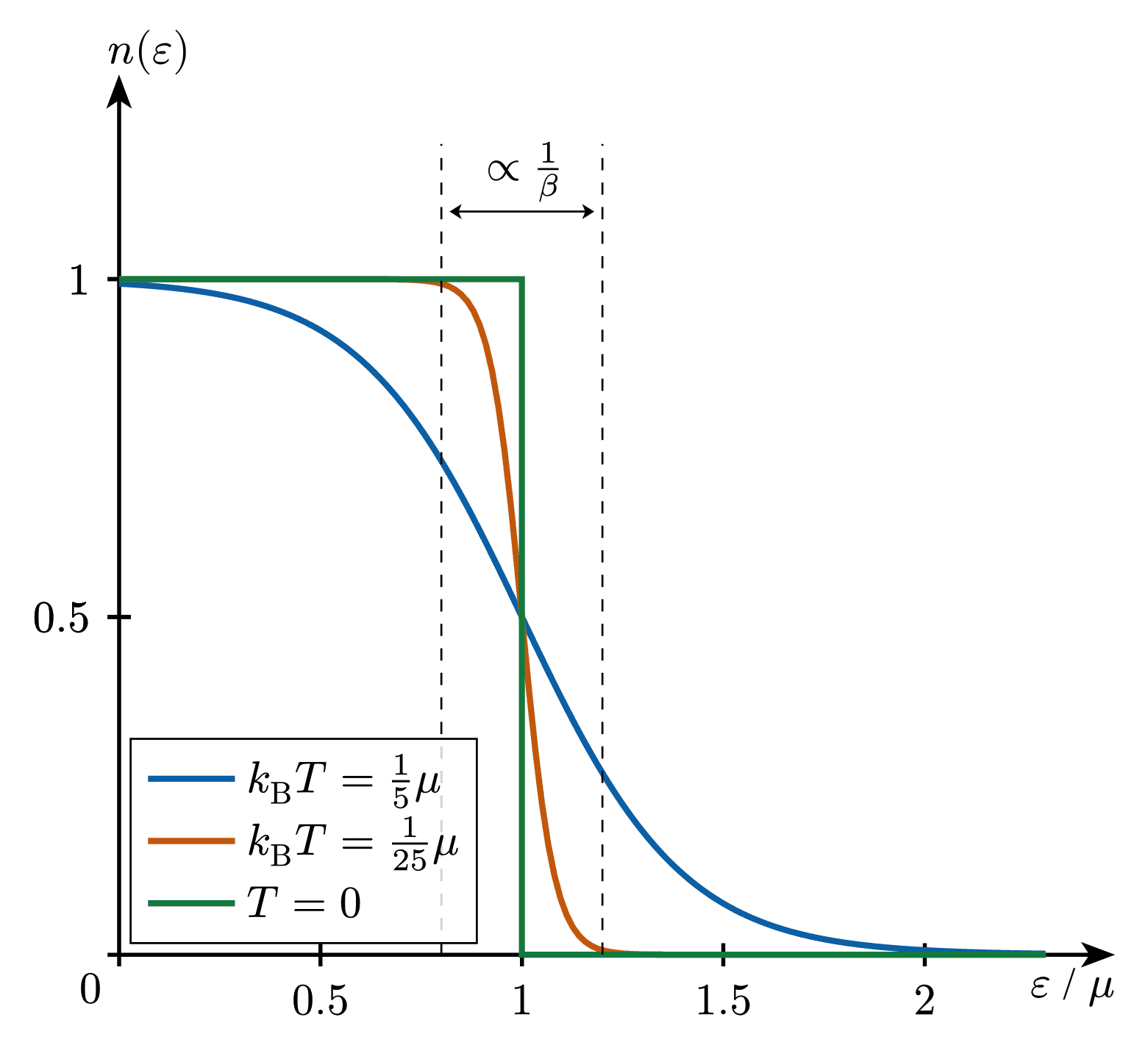

A plot illustrating the Fermi-Dirac distribution function for different temperatures relative to the chemical potential (ϵ/μ\epsilon/\mu). The plot demonstrates how the occupation number (n(ϵ)n(\epsilon)) changes as the temperature increases from zero to higher values. The visualization also highlights the effect of thermal fluctuations, which increase with higher temperatures.


Fermi-Dirac Distribution

  Download

PNGPDFSVG

  Code

  LaTeX

fermi-dirac-distro.tex (36 lines)

\documentclass{standalone}

\usepackage{pgfplots,mathtools}
\pgfplotsset{compat=newest}

\def\xmax{2.3}\def\ymax{1.2}

\begin{document}
\begin{tikzpicture}
  \begin{axis}[
      xlabel=$\epsilon/\mu$,
      ylabel=$n(\epsilon)$,
      domain=0:\xmax,ymax=\ymax,
      ytick={0.5,1},
      smooth,thick,
      axis lines=center,
      every tick/.style={thick},
      legend cell align=left]

    % Graphs
    \def\chempot{1}
    \def\n#1{1/(e^(#1*(x - \chempot)) + 1)}
    \addplot[color=red]{\n{5}};
    \addplot[color=orange,samples=100]{\n{25}};
    \addplot[const plot,color=blue] coordinates {(0,1) (\chempot,0) (\xmax,0)};

    \legend{$k_\text{B} T = \frac{1}{5} \mu$,$k_\text{B} T = \frac{1}{25} \mu$,$T = 0$}

    % Thermal fluctuations
    \draw [thin,dashed] (\chempot-0.25,1.1) -- (\chempot-0.25,0) -| (\chempot+0.25,1.1);
    \draw [thin,<->,shorten >=1,shorten <=1] (\chempot-0.25,1.05) -- (\chempot+0.25,1.05) node[midway,above] {$\propto 1/\beta$};

  \end{axis}
\end{tikzpicture}
\end{document}

  Typst

fermi-dirac-distro.typ (86 lines)

#import "@preview/cetz:0.3.2": canvas, draw
#import "@preview/cetz-plot:0.1.1": plot
#import draw: content, line, bezier

#set page(width: auto, height: auto, margin: 8pt)

// Fermi-Dirac distribution function
#let n_F(x, beta, mu: 1) = {
  1 / (calc.exp(beta * (x - mu)) + 1)
}

#canvas({
  draw.set-style(
    axes: (
      y: (label: (anchor: "south-west")),
      x: (label: (anchor: "north-east")),
    ),
  )

  plot.plot(
    size: (8, 7),
    x-label: [$epsilon$ / $mu$],
    y-label: $n(epsilon)$,
    x-min: 0,
    x-max: 2.3,
    y-min: 0,
    y-max: 1.2,
    x-tick-step: .5,
    y-tick-step: .5,
    y-ticks: (0.5, 1),
    axis-style: "left",
    legend: (5.5, 2.5),
    legend-style: (item: (spacing: 0.2), padding: 0.15),
    {
      // Plot distributions for different temperatures
      let chem-pot = 1

      // T = μ/5k_B (red curve)
      plot.add(
        style: (stroke: red + 1.5pt),
        domain: (0, 2.3),
        samples: 150,
        x => n_F(x, 5),
        label: $k_"B" T = 1 / 5 mu$,
      )

      // T = μ/25k_B (orange curve)
      plot.add(
        style: (stroke: orange + 1.5pt),
        domain: (0, 2.3),
        samples: 150,
        x => n_F(x, 25),
        label: $k_"B" T = 1 / 25 mu$,
      )

      // T = 0 (blue step function)
      let points = ((0, 1), (chem-pot, 1), (chem-pot, 0), (2.3, 0))
      plot.add(
        style: (stroke: blue + 1.5pt),
        points,
        label: $T = 0$,
      )

      plot.add-vline(0.8, style: (stroke: (dash: "dashed", thickness: 0.5pt)))
      plot.add-vline(1.2, style: (stroke: (dash: "dashed", thickness: 0.5pt)))

      // Add thermal fluctuation indicators
      plot.add-hline(
        1.1,
        min: 0.8,
        max: 1.2,
        style: (
          stroke: (thickness: 0.5pt),
          mark: (start: "stealth", end: "stealth", stroke: black + 0.5pt, fill: black, scale: .1),
        ),
      )
    },
  )

  content(
    (3.5, 6.5),
    $prop 1 / beta$,
    anchor: "south",
  )
})
