Organic Molecule

  Download

  Code

  LaTeX

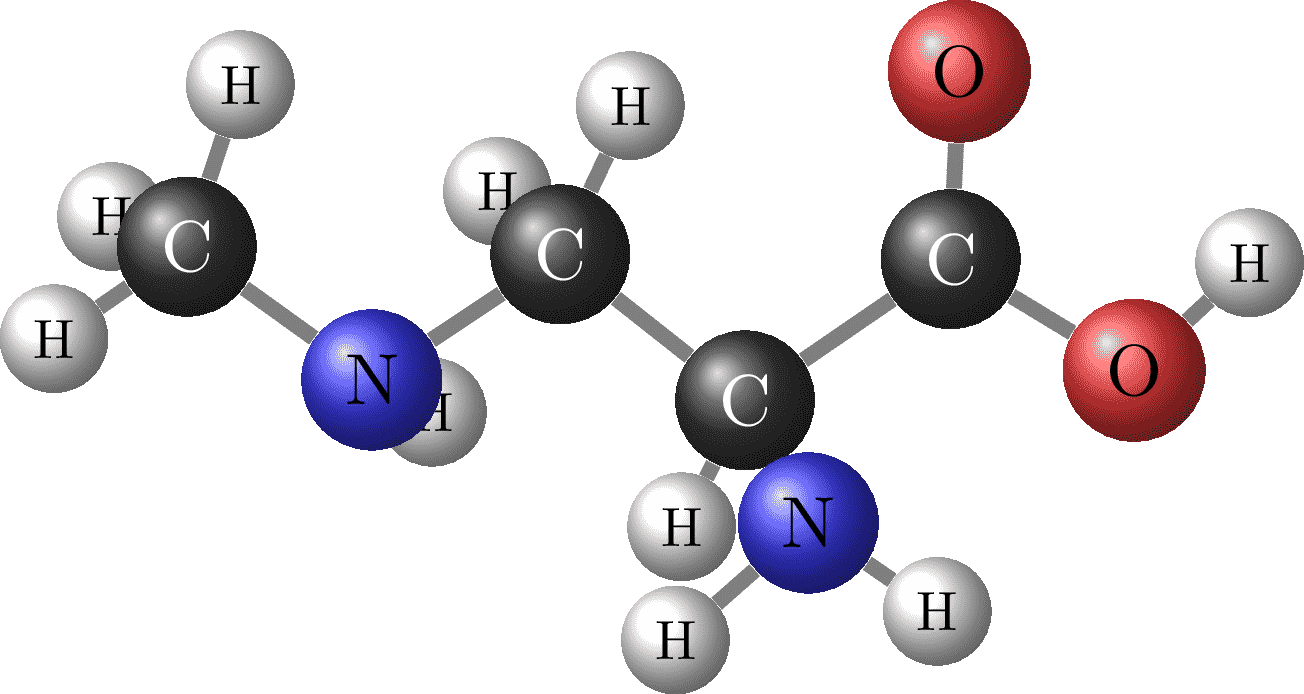

\documentclass[tikz]{standalone}

\pgfdeclarelayer{background}
\pgfsetlayers{background, main}

\begin{document}

\begin{tikzpicture}
  \node[ball color=white, circle] (H1) at (-3.17, 1.39, -0.92) {H};
  \node[ball color=white, circle] (H2) at (-3.31, 1.23, 0.84) {H};
  \node[ball color=white, circle] (H3) at (-4.08, 0.05, -0.21) {H};
  \node[ball color=white, circle] (H4) at (-1.95, -0.69, -0.92) {H};
  \node[ball color=white, circle] (H5) at (-0.86, 1.39, 0.84) {H};
  \node[ball color=white, circle] (H6) at (-0.69, 1.26, -0.91) {H};
  \node[ball color=white, circle] (H7) at (0.46, -0.59, 1.23) {H};
  \node[ball color=white, circle] (H8) at (1.39, -1.82, -0.57) {H};
  \node[ball color=white, circle] (H9) at (-0.23, -1.96, -0.46) {H};
  \node[ball color=white, circle] (H10) at (3.57, 0.59, -0.06) {H};
  \node[ball color=black!75, circle, white, scale=1.3] (C1) at (-3.19, 0.68, -0.09) {C};
  \node[ball color=black!75, circle, white, scale=1.3] (C2) at (-0.78, 0.67, 0.01) {C};
  \node[ball color=black!75, circle, white, scale=1.3] (C3) at (0.47, -0.18, 0.21) {C};
  \node[ball color=black!75, circle, white, scale=1.3] (C4) at (1.73, 0.67, 0.09) {C};
  \node[ball color=blue!75, circle, scale=1.3] (N1) at (-2.00, -0.15, -0.05) {N};
  \node[ball color=blue!75, circle, scale=1.3] (N2) at (0.51, -1.32, -0.73) {N};
  \node[ball color=red!75, circle, scale=1.3] (O1) at (1.80, 1.88, 0.13) {O};
  \node[ball color=red!75, circle, scale=1.3] (O2) at (2.86, -0.07, 0.00) {O};
  \begin{pgfonlayer}{background}
    \draw[gray, line width=1mm] (H1) -- (C1) -- (N1) -- (C2) -- (C3) -- (C4) -- (O1) (H2) -- (C1) (H3) -- (C1) (N1) -- (H4) (C2) -- (H5) (C2) -- (H6) (C3) -- (H7) (C3) -- (N2) -- (H8) (N2) -- (H9) (C4) -- (O2) -- (H10);
  \end{pgfonlayer}
\end{tikzpicture}

\end{document}

  Typst

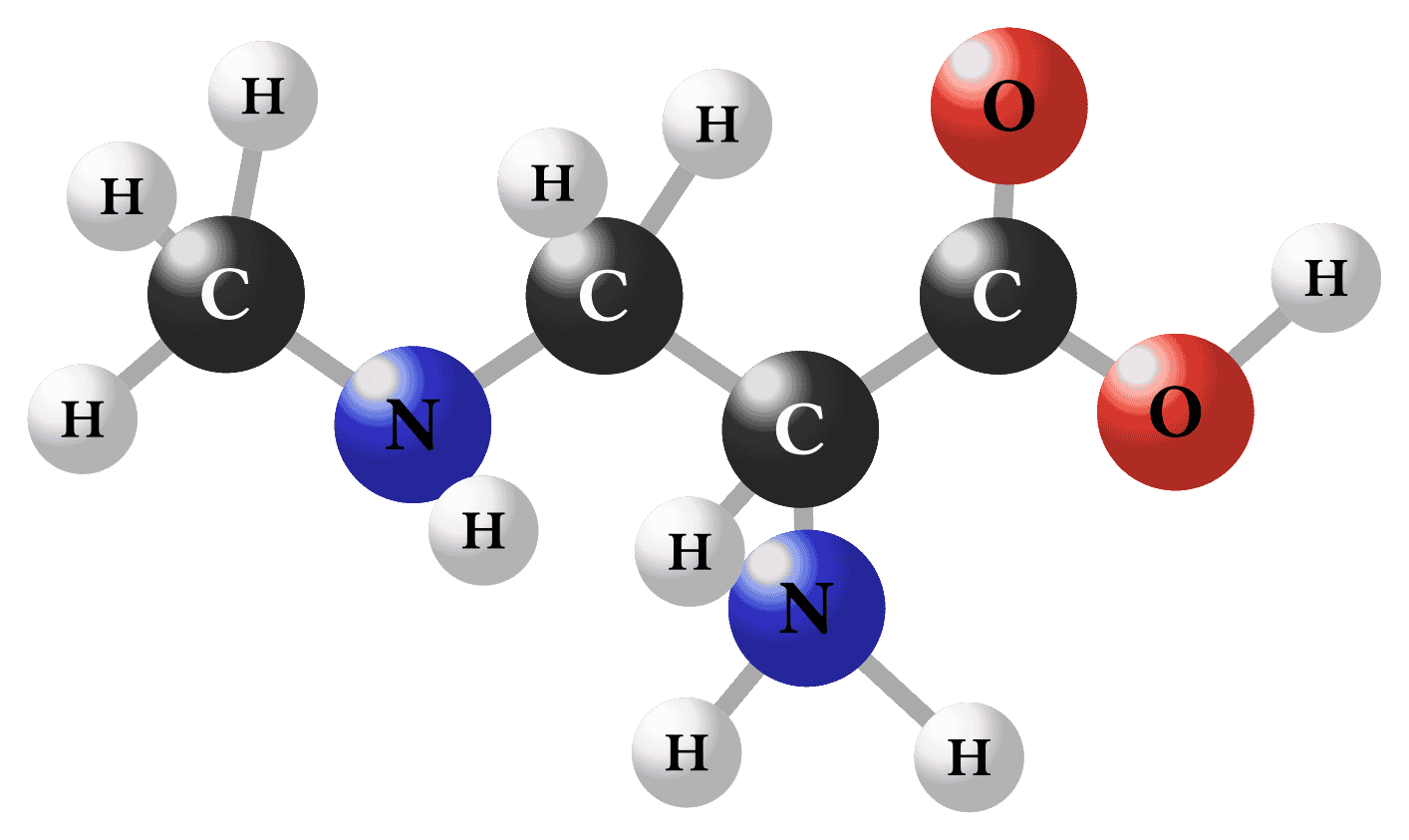

#import "@preview/cetz:0.3.4": canvas, draw
#import draw: circle, content, line, on-layer

#set page(width: auto, height: auto, margin: 5pt)

// Atom with 3D shading effect
#let atom(pos, color, element, radius: 0.3, name: none) = {
  // Base circle with main color
  circle(
    pos,
    radius: radius,
    stroke: none,
    fill: color,
    name: name,
  )

  // Gradient overlay for 3D effect
  circle(
    pos,
    radius: radius,
    stroke: none,
    fill: gradient.radial(
      color.lighten(85%),
      color,
      color.darken(25%),
      focal-center: (25%, 20%),
      focal-radius: 10%,
      center: (30%, 25%),
    ),
  )

  // Add element label
  let text-color = if color == rgb("#333333") { white } else { black }

  // Calculate text size based on radius
  let text-size = if radius < 0.4 { 10pt } else { 14pt }

  content(
    pos,
    text(fill: text-color, weight: "bold", size: text-size)[#element],
    anchor: "center",
  )
}

#canvas({
  // Define atom colors
  let hydrogen-color = rgb("#eee")
  let carbon-color = rgb("#333")
  let nitrogen-color = rgb("#3333cc")
  let oxygen-color = red.darken(10%)

  // Define atom sizes - increased to match target image
  let h-radius = 0.35
  let heavy-radius = 0.5

  // Adjust hydrogen positions to be further from connected atoms
  // Original positions from LaTeX
  let orig-h-positions = (
    ("H1", (-2.9, 1.39)),
    ("H2", (-3.5, 1.23)),
    ("H3", (-3.8, 0.15)),
    ("H4", (-1.7, -0.6)),
    ("H5", (-0.3, 1.4)),
    ("H6", (-1, 1.15)),
    ("H7", (0, -0.7)),
    ("H8", (1, -1.82)),
    ("H9", (0.2, -1.8)),
    ("H10", (3.5, 0.5)),
  )

  // Heavy atom positions
  let c-positions = (
    ("C1", (-3.19, 0.68)),
    ("C2", (-0.78, 0.67)),
    ("C3", (0.47, -0.18)),
    ("C4", (1.73, 0.67)),
  )

  let n-positions = (
    ("N1", (-2.00, -0.15)),
    ("N2", (0.51, -1.32)),
  )

  let o-positions = (
    ("O1", (1.80, 1.88)),
    ("O2", (2.86, -0.07)),
  )

  // Function to move hydrogen atoms further from their connected atoms
  let adjust-h-position(h-pos, connected-pos, factor: 1.5) = {
    let (hx, hy) = h-pos
    let (cx, cy) = connected-pos
    let dx = hx - cx
    let dy = hy - cy
    let dist = calc.sqrt(dx * dx + dy * dy)
    let new-dist = dist * factor
    let scale = new-dist / dist
    (cx + dx * scale, cy + dy * scale)
  }

  // Connection map: which hydrogen connects to which heavy atom
  let h-connections = (
    "H1": "C1",
    "H2": "C1",
    "H3": "C1",
    "H4": "N1",
    "H5": "C2",
    "H6": "C2",
    "H7": "C3",
    "H8": "N2",
    "H9": "N2",
    "H10": "O2",
  )

  // Combine all heavy atom positions for lookup
  let heavy-atoms = (:)
  for (name, pos) in c-positions { heavy-atoms.insert(name, pos) }
  for (name, pos) in n-positions { heavy-atoms.insert(name, pos) }
  for (name, pos) in o-positions { heavy-atoms.insert(name, pos) }

  // Adjust hydrogen positions
  let h-positions = (:)
  for (name, pos) in orig-h-positions {
    let connected-atom = h-connections.at(name)
    let connected-pos = heavy-atoms.at(connected-atom)
    h-positions.insert(name, adjust-h-position(pos, connected-pos))
  }

  // Further adjust overlapping hydrogens
  // Adjust H1 and H2 which overlap in the top left
  let h1-pos = h-positions.at("H1")
  let h2-pos = h-positions.at("H2")
  h-positions.insert("H1", (h1-pos.at(0) - 0.2, h1-pos.at(1) + 0.2))
  h-positions.insert("H2", (h2-pos.at(0) - 0.2, h2-pos.at(1) - 0.2))

  // Adjust H8 and H9 which overlap near the right N atom
  let h8-pos = h-positions.at("H8")
  let h9-pos = h-positions.at("H9")
  h-positions.insert("H8", (h8-pos.at(0) + 0.3, h8-pos.at(1) - 0.2))
  h-positions.insert("H9", (h9-pos.at(0) - 0.3, h9-pos.at(1) - 0.2))

  // Draw all atoms
  // Draw carbon atoms
  for (name, pos) in c-positions {
    atom(pos, carbon-color, "C", radius: heavy-radius, name: name)
  }

  // Draw nitrogen atoms
  for (name, pos) in n-positions {
    atom(pos, nitrogen-color, "N", radius: heavy-radius, name: name)
  }

  // Draw oxygen atoms
  for (name, pos) in o-positions {
    atom(pos, oxygen-color, "O", radius: heavy-radius, name: name)
  }

  // Draw hydrogen atoms
  for (name, pos) in h-positions {
    atom(pos, hydrogen-color, "H", radius: h-radius, name: name)
  }

  // Draw bonds on a background layer (behind atoms)
  on-layer(
    -1,
    {
      // Main chain
      let bond-chain = ("H1", "C1", "N1", "C2", "C3", "C4", "O1")
      for i in range(bond-chain.len() - 1) {
        let from = bond-chain.at(i)
        let to = bond-chain.at(i + 1)

        let from-pos = if from.starts-with("H") {
          h-positions.at(from)
        } else {
          heavy-atoms.at(from)
        }

        let to-pos = if to.starts-with("H") {
          h-positions.at(to)
        } else {
          heavy-atoms.at(to)
        }

        line(
          from-pos,
          to-pos,
          stroke: (paint: gray, thickness: 3.5pt),
        )
      }

      // Additional bonds
      let additional-bonds = (
        ("H2", "C1"),
        ("H3", "C1"),
        ("N1", "H4"),
        ("C2", "H5"),
        ("C2", "H6"),
        ("C3", "H7"),
        ("C3", "N2"),
        ("N2", "H8"),
        ("N2", "H9"),
        ("C4", "O2"),
        ("O2", "H10"),
      )

      for (from, to) in additional-bonds {
        let from-pos = if from.starts-with("H") {
          h-positions.at(from)
        } else {
          heavy-atoms.at(from)
        }

        let to-pos = if to.starts-with("H") {
          h-positions.at(to)
        } else {
          heavy-atoms.at(to)
        }

        line(
          from-pos,
          to-pos,
          stroke: (paint: gray, thickness: 3.5pt),
        )
      }
    },
  )
})
