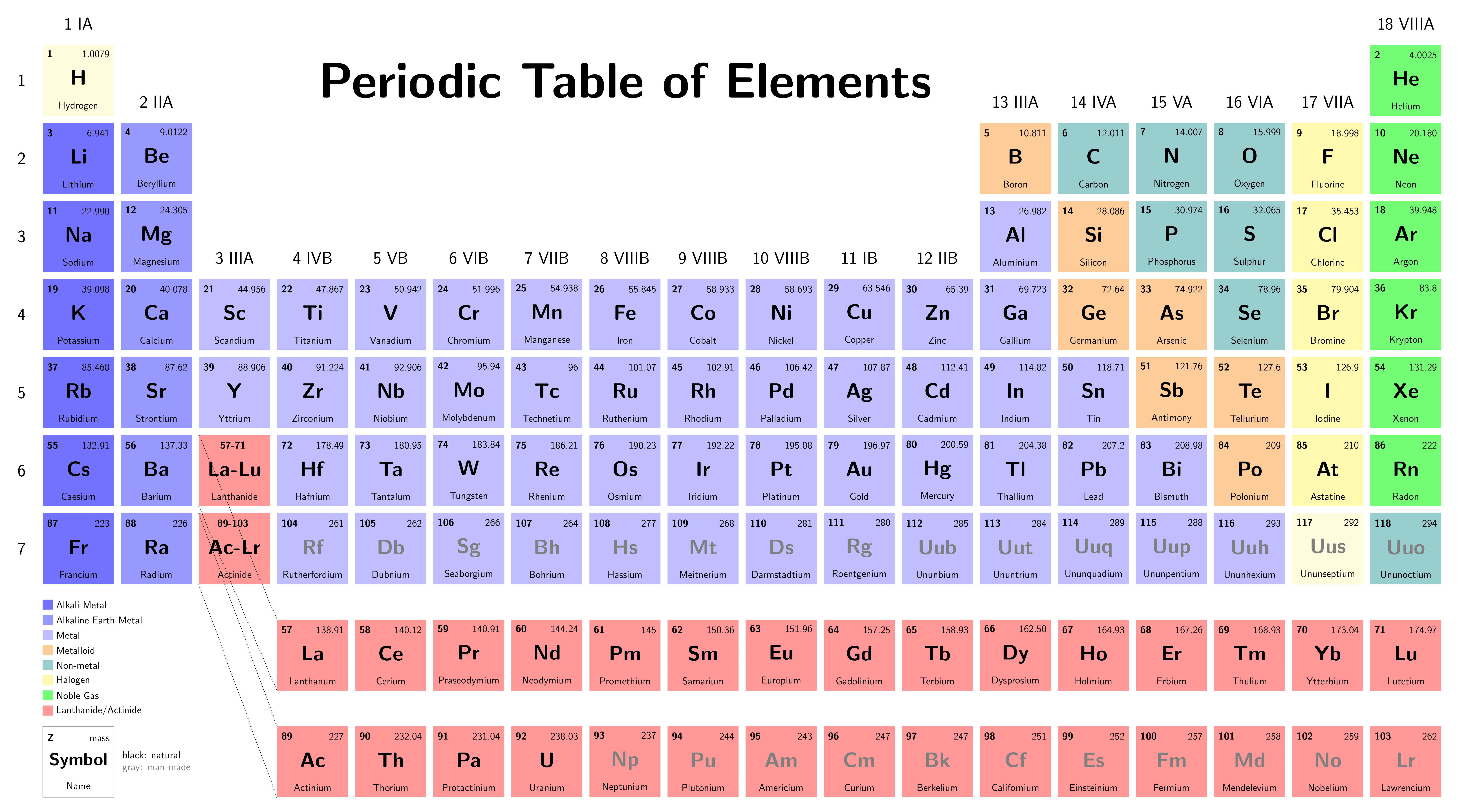

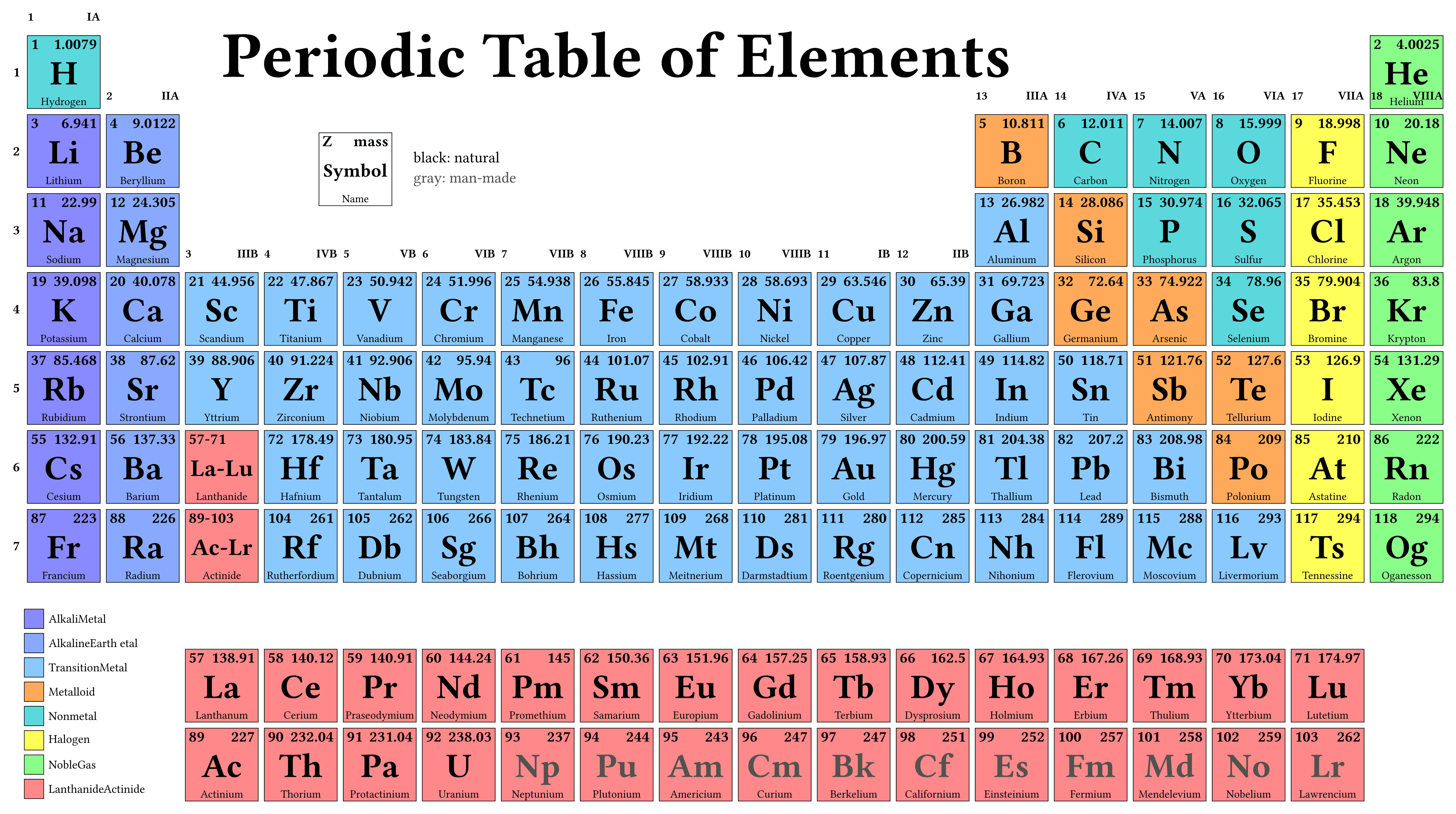

Periodic Table
Creator: Creator: Ivan Griffin (original)
The periodic table of elements, a graphic formulation of the periodic dependence of elemental properties on their atomic numbers. The table is divided into four roughly rectangular areas called blocks. Rows are called periods, columns are groups. Elements from the same group show similar chemical characteristics. Trends run through the periodic table, with nonmetallic character (keeping their own electrons) increasing from left to right across a period, and from down to up across a group, and metallic character (surrendering electrons to other atoms) increasing in the opposite direction.
Download
Code
LaTeX
periodic-table.tex (272 lines)
\documentclass[tikz,border=5mm]{standalone}
\usetikzlibrary{shapes,calc}
\begin{document}
\newcommand{\ElemLabel}[4]{
\begin{minipage}{2.2cm}
\centering
{\textbf{#1} \hfill #2}%
\linebreak \linebreak
{\textbf{#3}}%
\linebreak \linebreak
{{#4}}
\end{minipage}
}
\newcommand{\NaturalElem}[4]{\ElemLabel{#1}{#2}{\huge {#3}}{#4}}
\newcommand{\SyntheticElem}[4]{\ElemLabel{#1}{#2}{\color{gray}{\huge #3}}{#4}}
\begin{tikzpicture}[font=\sffamily]
% Fill Color Styles
\tikzstyle{ElementFill} = [fill=yellow!15]
\tikzstyle{AlkaliMetalFill} = [fill=blue!55]
\tikzstyle{AlkalineEarthMetalFill} = [fill=blue!40]
\tikzstyle{MetalFill} = [fill=blue!25]
\tikzstyle{MetalloidFill} = [fill=orange!40]
\tikzstyle{NonmetalFill} = [fill=teal!40]
\tikzstyle{HalogenFill} = [fill=yellow!40]
\tikzstyle{NobleGasFill} = [fill=green!55]
\tikzstyle{LanthanideActinideFill} = [fill=red!40]
% Element Styles
\tikzstyle{Element} = [ElementFill,
minimum width=2.5cm, minimum height=2.5cm, node distance=2.75cm]
\tikzstyle{AlkaliMetal} = [Element, AlkaliMetalFill]
\tikzstyle{AlkalineEarthMetal} = [Element, AlkalineEarthMetalFill]
\tikzstyle{Metal} = [Element, MetalFill]
\tikzstyle{Metalloid} = [Element, MetalloidFill]
\tikzstyle{Nonmetal} = [Element, NonmetalFill]
\tikzstyle{Halogen} = [Element, HalogenFill]
\tikzstyle{NobleGas} = [Element, NobleGasFill]
\tikzstyle{LanthanideActinide} = [Element, LanthanideActinideFill]
\tikzstyle{PeriodLabel} = [font={\sffamily\LARGE}, node distance=2.0cm]
\tikzstyle{GroupLabel} = [font={\sffamily\LARGE}, minimum width=2.75cm, node distance=2.0cm]
% Group 1 - IA
\node[Element] (H) {\NaturalElem{1} {1.0079}{H}{Hydrogen}};
\node[below of=H, AlkaliMetal] (Li) {\NaturalElem{3}{6.941}{Li}{Lithium}};
\node[below of=Li, AlkaliMetal] (Na) {\NaturalElem{11}{22.990}{Na}{Sodium}};
\node[below of=Na, AlkaliMetal] (K) {\NaturalElem{19}{39.098}{K}{Potassium}};
\node[below of=K, AlkaliMetal] (Rb) {\NaturalElem{37}{85.468}{Rb}{Rubidium}};
\node[below of=Rb, AlkaliMetal] (Cs) {\NaturalElem{55}{132.91}{Cs}{Caesium}};
\node[below of=Cs, AlkaliMetal] (Fr) {\NaturalElem{87}{223}{Fr}{Francium}};
% Group 2 - IIA
\node[right of=Li, AlkalineEarthMetal] (Be) {\NaturalElem{4}{9.0122}{Be}{Beryllium}};
\node[below of=Be, AlkalineEarthMetal] (Mg) {\NaturalElem{12}{24.305}{Mg}{Magnesium}};
\node[below of=Mg, AlkalineEarthMetal] (Ca) {\NaturalElem{20}{40.078}{Ca}{Calcium}};
\node[below of=Ca, AlkalineEarthMetal] (Sr) {\NaturalElem{38}{87.62}{Sr}{Strontium}};
\node[below of=Sr, AlkalineEarthMetal] (Ba) {\NaturalElem{56}{137.33}{Ba}{Barium}};
\node[below of=Ba, AlkalineEarthMetal] (Ra) {\NaturalElem{88}{226}{Ra}{Radium}};
% Group 3 - IIIB
\node[right of=Ca, Metal] (Sc) {\NaturalElem{21}{44.956}{Sc}{Scandium}};
\node[below of=Sc, Metal] (Y) {\NaturalElem{39}{88.906}{Y}{Yttrium}};
\node[below of=Y, LanthanideActinide] (LaLu) {\NaturalElem{57-71}{}{La-Lu}{Lanthanide}};
\node[below of=LaLu, LanthanideActinide] (AcLr) {\NaturalElem{89-103}{}{Ac-Lr}{Actinide}};
% Group 4 - IVB
\node[right of=Sc, Metal] (Ti) {\NaturalElem{22}{47.867}{Ti}{Titanium}};
\node[below of=Ti, Metal] (Zr) {\NaturalElem{40}{91.224}{Zr}{Zirconium}};
\node[below of=Zr, Metal] (Hf) {\NaturalElem{72}{178.49}{Hf}{Hafnium}};
\node[below of=Hf, Metal] (Rf) {\SyntheticElem{104}{261}{Rf}{Rutherfordium}};
% Group 5 - VB
\node[right of=Ti, Metal] (V) {\NaturalElem{23}{50.942}{V}{Vanadium}};
\node[below of=V, Metal] (Nb) {\NaturalElem{41}{92.906}{Nb}{Niobium}};
\node[below of=Nb, Metal] (Ta) {\NaturalElem{73}{180.95}{Ta}{Tantalum}};
\node[below of=Ta, Metal] (Db) {\SyntheticElem{105}{262}{Db}{Dubnium}};
% Group 6 - VIB
\node[right of=V, Metal] (Cr) {\NaturalElem{24}{51.996}{Cr}{Chromium}};
\node[below of=Cr, Metal] (Mo) {\NaturalElem{42}{95.94}{Mo}{Molybdenum}};
\node[below of=Mo, Metal] (W) {\NaturalElem{74}{183.84}{W}{Tungsten}};
\node[below of=W, Metal] (Sg) {\SyntheticElem{106}{266}{Sg}{Seaborgium}};
% Group 7 - VIIB
\node[right of=Cr, Metal] (Mn) {\NaturalElem{25}{54.938}{Mn}{Manganese}};
\node[below of=Mn, Metal] (Tc) {\NaturalElem{43}{96}{Tc}{Technetium}};
\node[below of=Tc, Metal] (Re) {\NaturalElem{75}{186.21}{Re}{Rhenium}};
\node[below of=Re, Metal] (Bh) {\SyntheticElem{107}{264}{Bh}{Bohrium}};
% Group 8 - VIIIB
\node[right of=Mn, Metal] (Fe) {\NaturalElem{26}{55.845}{Fe}{Iron}};
\node[below of=Fe, Metal] (Ru) {\NaturalElem{44}{101.07}{Ru}{Ruthenium}};
\node[below of=Ru, Metal] (Os) {\NaturalElem{76}{190.23}{Os}{Osmium}};
\node[below of=Os, Metal] (Hs) {\SyntheticElem{108}{277}{Hs}{Hassium}};
% Group 9 - VIIIB
\node[right of=Fe, Metal] (Co) {\NaturalElem{27}{58.933}{Co}{Cobalt}};
\node[below of=Co, Metal] (Rh) {\NaturalElem{45}{102.91}{Rh}{Rhodium}};
\node[below of=Rh, Metal] (Ir) {\NaturalElem{77}{192.22}{Ir}{Iridium}};
\node[below of=Ir, Metal] (Mt) {\SyntheticElem{109}{268}{Mt}{Meitnerium}};
% Group 10 - VIIIB
\node[right of=Co, Metal] (Ni) {\NaturalElem{28}{58.693}{Ni}{Nickel}};
\node[below of=Ni, Metal] (Pd) {\NaturalElem{46}{106.42}{Pd}{Palladium}};
\node[below of=Pd, Metal] (Pt) {\NaturalElem{78}{195.08}{Pt}{Platinum}};
\node[below of=Pt, Metal] (Ds) {\SyntheticElem{110}{281}{Ds}{Darmstadtium}};
% Group 11 - IB
\node[right of=Ni, Metal] (Cu) {\NaturalElem{29}{63.546}{Cu}{Copper}};
\node[below of=Cu, Metal] (Ag) {\NaturalElem{47}{107.87}{Ag}{Silver}};
\node[below of=Ag, Metal] (Au) {\NaturalElem{79}{196.97}{Au}{Gold}};
\node[below of=Au, Metal] (Rg) {\SyntheticElem{111}{280}{Rg}{Roentgenium}};
% Group 12 - IIB
\node[right of=Cu, Metal] (Zn) {\NaturalElem{30}{65.39}{Zn}{Zinc}};
\node[below of=Zn, Metal] (Cd) {\NaturalElem{48}{112.41}{Cd}{Cadmium}};
\node[below of=Cd, Metal] (Hg) {\NaturalElem{80}{200.59}{Hg}{Mercury}};
\node[below of=Hg, Metal] (Uub) {\SyntheticElem{112}{285}{Uub}{Ununbium}};
% Group 13 - IIIA
\node[right of=Zn, Metal] (Ga) {\NaturalElem{31}{69.723}{Ga}{Gallium}};
\node[above of=Ga, Metal] (Al) {\NaturalElem{13}{26.982}{Al}{Aluminium}};
\node[above of=Al, Metalloid] (B) {\NaturalElem{5}{10.811}{B}{Boron}};
\node[below of=Ga, Metal] (In) {\NaturalElem{49}{114.82}{In}{Indium}};
\node[below of=In, Metal] (Tl) {\NaturalElem{81}{204.38}{Tl}{Thallium}};
\node[below of=Tl, Metal] (Uut) {\SyntheticElem{113}{284}{Uut}{Ununtrium}};
% Group 14 - IVA
\node[right of=B, Nonmetal] (C) {\NaturalElem{6}{12.011}{C}{Carbon}};
\node[below of=C, Metalloid] (Si) {\NaturalElem{14}{28.086}{Si}{Silicon}};
\node[below of=Si, Metalloid] (Ge) {\NaturalElem{32}{72.64}{Ge}{Germanium}};
\node[below of=Ge, Metal] (Sn) {\NaturalElem{50}{118.71}{Sn}{Tin}};
\node[below of=Sn, Metal] (Pb) {\NaturalElem{82}{207.2}{Pb}{Lead}};
\node[below of=Pb, Metal] (Uuq) {\SyntheticElem{114}{289}{Uuq}{Ununquadium}};
% Group 15 - VA
\node[right of=C, Nonmetal] (N) {\NaturalElem{7}{14.007}{N}{Nitrogen}};
\node[below of=N, Nonmetal] (P) {\NaturalElem{15}{30.974}{P}{Phosphorus}};
\node[below of=P, Metalloid] (As) {\NaturalElem{33}{74.922}{As}{Arsenic}};
\node[below of=As, Metalloid] (Sb) {\NaturalElem{51}{121.76}{Sb}{Antimony}};
\node[below of=Sb, Metal] (Bi) {\NaturalElem{83}{208.98}{Bi}{Bismuth}};
\node[below of=Bi, Metal] (Uup) {\SyntheticElem{115}{288}{Uup}{Ununpentium}};
% Group 16 - VIA
\node[right of=N, Nonmetal] (O) {\NaturalElem{8}{15.999}{O}{Oxygen}};
\node[below of=O, Nonmetal] (S) {\NaturalElem{16}{32.065}{S}{Sulphur}};
\node[below of=S, Nonmetal] (Se) {\NaturalElem{34}{78.96}{Se}{Selenium}};
\node[below of=Se, Metalloid] (Te) {\NaturalElem{52}{127.6}{Te}{Tellurium}};
\node[below of=Te, Metalloid] (Po) {\NaturalElem{84}{209}{Po}{Polonium}};
\node[below of=Po, Metal] (Uuh) {\SyntheticElem{116}{293}{Uuh}{Ununhexium}};
% Group 17 - VIIA
\node[right of=O, Halogen] (F) {\NaturalElem{9}{18.998}{F}{Fluorine}};
\node[below of=F, Halogen] (Cl) {\NaturalElem{17}{35.453}{Cl}{Chlorine}};
\node[below of=Cl, Halogen] (Br) {\NaturalElem{35}{79.904}{Br}{Bromine}};
\node[below of=Br, Halogen] (I) {\NaturalElem{53}{126.9}{I}{Iodine}};
\node[below of=I, Halogen] (At) {\NaturalElem{85}{210}{At}{Astatine}};
\node[below of=At, Element] (Uus) {\SyntheticElem{117}{292}{Uus}{Ununseptium}};
% Group 18 - VIIIA
\node[right of=F, NobleGas] (Ne) {\NaturalElem{10}{20.180}{Ne}{Neon}};
\node[above of=Ne, NobleGas] (He) {\NaturalElem{2}{4.0025}{He}{Helium}};
\node[below of=Ne, NobleGas] (Ar) {\NaturalElem{18}{39.948}{Ar}{Argon}};
\node[below of=Ar, NobleGas] (Kr) {\NaturalElem{36}{83.8}{Kr}{Krypton}};
\node[below of=Kr, NobleGas] (Xe) {\NaturalElem{54}{131.29}{Xe}{Xenon}};
\node[below of=Xe, NobleGas] (Rn) {\NaturalElem{86}{222}{Rn}{Radon}};
\node[below of=Rn, Nonmetal] (Uuo) {\SyntheticElem{118}{294}{Uuo}{Ununoctium}};
% Period
\node[left of=H, PeriodLabel] (Period1) {1};
\node[left of=Li, PeriodLabel] (Period2) {2};
\node[left of=Na, PeriodLabel] (Period3) {3};
\node[left of=K, PeriodLabel] (Period4) {4};
\node[left of=Rb, PeriodLabel] (Period5) {5};
\node[left of=Cs, PeriodLabel] (Period6) {6};
\node[left of=Fr, PeriodLabel] (Period7) {7};
% Group
\node[above of=H, GroupLabel] (Group1) {1 \hfill IA};
\node[above of=Be, GroupLabel] (Group2) {2 \hfill IIA};
\node[above of=Sc, GroupLabel] (Group3) {3 \hfill IIIA};
\node[above of=Ti, GroupLabel] (Group4) {4 \hfill IVB};
\node[above of=V, GroupLabel] (Group5) {5 \hfill VB};
\node[above of=Cr, GroupLabel] (Group6) {6 \hfill VIB};
\node[above of=Mn, GroupLabel] (Group7) {7 \hfill VIIB};
\node[above of=Fe, GroupLabel] (Group8) {8 \hfill VIIIB};
\node[above of=Co, GroupLabel] (Group9) {9 \hfill VIIIB};
\node[above of=Ni, GroupLabel] (Group10) {10 \hfill VIIIB};
\node[above of=Cu, GroupLabel] (Group11) {11 \hfill IB};
\node[above of=Zn, GroupLabel] (Group12) {12 \hfill IIB};
\node[above of=B, GroupLabel] (Group13) {13 \hfill IIIA};
\node[above of=C, GroupLabel] (Group14) {14 \hfill IVA};
\node[above of=N, GroupLabel] (Group15) {15 \hfill VA};
\node[above of=O, GroupLabel] (Group16) {16 \hfill VIA};
\node[above of=F, GroupLabel] (Group17) {17 \hfill VIIA};
\node[above of=He, GroupLabel] (Group18) {18 \hfill VIIIA};
% Lanthanide
\node[below of=Rf, LanthanideActinide, yshift=-1cm] (La) {\NaturalElem{57}{138.91}{La}{Lanthanum}};
\node[right of=La, LanthanideActinide] (Ce) {\NaturalElem{58}{140.12}{Ce}{Cerium}};
\node[right of=Ce, LanthanideActinide] (Pr) {\NaturalElem{59}{140.91}{Pr}{Praseodymium}};
\node[right of=Pr, LanthanideActinide] (Nd) {\NaturalElem{60}{144.24}{Nd}{Neodymium}};
\node[right of=Nd, LanthanideActinide] (Pm) {\NaturalElem{61}{145}{Pm}{Promethium}};
\node[right of=Pm, LanthanideActinide] (Sm) {\NaturalElem{62}{150.36}{Sm}{Samarium}};
\node[right of=Sm, LanthanideActinide] (Eu) {\NaturalElem{63}{151.96}{Eu}{Europium}};
\node[right of=Eu, LanthanideActinide] (Gd) {\NaturalElem{64}{157.25}{Gd}{Gadolinium}};
\node[right of=Gd, LanthanideActinide] (Tb) {\NaturalElem{65}{158.93}{Tb}{Terbium}};
\node[right of=Tb, LanthanideActinide] (Dy) {\NaturalElem{66}{162.50}{Dy}{Dysprosium}};
\node[right of=Dy, LanthanideActinide] (Ho) {\NaturalElem{67}{164.93}{Ho}{Holmium}};
\node[right of=Ho, LanthanideActinide] (Er) {\NaturalElem{68}{167.26}{Er}{Erbium}};
\node[right of=Er, LanthanideActinide] (Tm) {\NaturalElem{69}{168.93}{Tm}{Thulium}};
\node[right of=Tm, LanthanideActinide] (Yb) {\NaturalElem{70}{173.04}{Yb}{Ytterbium}};
\node[right of=Yb, LanthanideActinide] (Lu) {\NaturalElem{71}{174.97}{Lu}{Lutetium}};
% Actinide
\node[below of=La, LanthanideActinide, yshift=-1cm] (Ac) {\NaturalElem{89}{227}{Ac}{Actinium}};
\node[right of=Ac, LanthanideActinide] (Th) {\NaturalElem{90}{232.04}{Th}{Thorium}};
\node[right of=Th, LanthanideActinide] (Pa) {\NaturalElem{91}{231.04}{Pa}{Protactinium}};
\node[right of=Pa, LanthanideActinide] (U) {\NaturalElem{92}{238.03}{U}{Uranium}};
\node[right of=U, LanthanideActinide] (Np) {\SyntheticElem{93}{237}{Np}{Neptunium}};
\node[right of=Np, LanthanideActinide] (Pu) {\SyntheticElem{94}{244}{Pu}{Plutonium}};
\node[right of=Pu, LanthanideActinide] (Am) {\SyntheticElem{95}{243}{Am}{Americium}};
\node[right of=Am, LanthanideActinide] (Cm) {\SyntheticElem{96}{247}{Cm}{Curium}};
\node[right of=Cm, LanthanideActinide] (Bk) {\SyntheticElem{97}{247}{Bk}{Berkelium}};
\node[right of=Bk, LanthanideActinide] (Cf) {\SyntheticElem{98}{251}{Cf}{Californium}};
\node[right of=Cf, LanthanideActinide] (Es) {\SyntheticElem{99}{252}{Es}{Einsteinium}};
\node[right of=Es, LanthanideActinide] (Fm) {\SyntheticElem{100}{257}{Fm}{Fermium}};
\node[right of=Fm, LanthanideActinide] (Md) {\SyntheticElem{101}{258}{Md}{Mendelevium}};
\node[right of=Md, LanthanideActinide] (No) {\SyntheticElem{102}{259}{No}{Nobelium}};
\node[right of=No, LanthanideActinide] (Lr) {\SyntheticElem{103}{262}{Lr}{Lawrencium}};
% Draw dotted lines connecting Lanthanide breakout to main table
\draw[thick,dotted] (LaLu.north west) -- (La.north west)
(LaLu.south west) -- (La.south west);
% Draw dotted lines connecting Actinide breakout to main table
\draw[thick,dotted] (AcLr.north west) -- (Ac.north west)
(AcLr.south west) -- (Ac.south west);
% Legend
\fill[AlkaliMetalFill] ($(La.north -| Fr.west) + (0,1em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (AlkaliMetal) {Alkali Metal};
\fill[AlkalineEarthMetalFill] ($(AlkaliMetal.west) - (1em,2em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (AlkalineEarthMetal) {Alkaline Earth Metal};
\fill[MetalFill] ($(AlkalineEarthMetal.west) - (1em,2em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Metal) {Metal};
\fill[MetalloidFill] ($(Metal.west) - (1em,2em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Metalloid) {Metalloid};
\fill[NonmetalFill] ($(Metalloid.west) - (1em,2em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Non-metal) {Non-metal};
\fill[HalogenFill] ($(Non-metal.west) - (1em,2em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Halogen) {Halogen};
\fill[NobleGasFill] ($(Halogen.west) - (1em,2em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (NobleGas) {Noble Gas};
\fill[LanthanideActinideFill] ($(NobleGas.west) - (1em,2em)$)
rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Lanthanide/Actinide) {Lanthanide/Actinide};
\node at (Ac -| Fr) [draw, Element, fill=white] (legend) {\NaturalElem{Z}{mass}{\LARGE Symbol}{Name}};
\node[align=left] at (Ac -| Ra) {black: natural\\\color{gray}gray: man-made};
% Diagram Title
\node at (H.west -| Fe.north) [scale=2, font={\sffamily\Huge\bfseries}]
{Periodic Table of Elements};
\end{tikzpicture}
\end{document}
Typst
periodic-table.typ (355 lines)
#import "@preview/cetz:0.3.2": canvas, draw
#set page(width: auto, height: auto, margin: 15pt)
// Element colors
#let colors = (
alkali-metal: rgb("#8989ff"),
alkaline-earth: rgb("#89a9ff"),
metal: rgb("#89c9ff"),
metalloid: rgb("#ffa959"),
nonmetal: rgb("#59d9d9"),
halogen: rgb("#ffff59"),
noble-gas: rgb("#89ff89"),
lanthanide: rgb("#ff8989"),
synthetic: rgb("#525252"),
)
// Element data
#let elements = (
// Period 1
(
("1", "1.0079", "H", "Hydrogen"),
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
("2", "4.0025", "He", "Helium", colors.noble-gas),
),
// Period 2
(
("3", "6.941", "Li", "Lithium", colors.alkali-metal),
("4", "9.0122", "Be", "Beryllium", colors.alkaline-earth),
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
("5", "10.811", "B", "Boron", colors.metalloid),
("6", "12.011", "C", "Carbon", colors.nonmetal),
("7", "14.007", "N", "Nitrogen", colors.nonmetal),
("8", "15.999", "O", "Oxygen", colors.nonmetal),
("9", "18.998", "F", "Fluorine", colors.halogen),
("10", "20.180", "Ne", "Neon", colors.noble-gas),
),
// Period 3
(
("11", "22.990", "Na", "Sodium", colors.alkali-metal),
("12", "24.305", "Mg", "Magnesium", colors.alkaline-earth),
none,
none,
none,
none,
none,
none,
none,
none,
none,
none,
("13", "26.982", "Al", "Aluminium", colors.metal),
("14", "28.086", "Si", "Silicon", colors.metalloid),
("15", "30.974", "P", "Phosphorus", colors.nonmetal),
("16", "32.065", "S", "Sulphur", colors.nonmetal),
("17", "35.453", "Cl", "Chlorine", colors.halogen),
("18", "39.948", "Ar", "Argon", colors.noble-gas),
),
// Period 4
(
("19", "39.098", "K", "Potassium", colors.alkali-metal),
("20", "40.078", "Ca", "Calcium", colors.alkaline-earth),
("21", "44.956", "Sc", "Scandium", colors.metal),
("22", "47.867", "Ti", "Titanium", colors.metal),
("23", "50.942", "V", "Vanadium", colors.metal),
("24", "51.996", "Cr", "Chromium", colors.metal),
("25", "54.938", "Mn", "Manganese", colors.metal),
("26", "55.845", "Fe", "Iron", colors.metal),
("27", "58.933", "Co", "Cobalt", colors.metal),
("28", "58.693", "Ni", "Nickel", colors.metal),
("29", "63.546", "Cu", "Copper", colors.metal),
("30", "65.39", "Zn", "Zinc", colors.metal),
("31", "69.723", "Ga", "Gallium", colors.metal),
("32", "72.64", "Ge", "Germanium", colors.metalloid),
("33", "74.922", "As", "Arsenic", colors.metalloid),
("34", "78.96", "Se", "Selenium", colors.nonmetal),
("35", "79.904", "Br", "Bromine", colors.halogen),
("36", "83.8", "Kr", "Krypton", colors.noble-gas),
),
// Period 5
(
("37", "85.468", "Rb", "Rubidium", colors.alkali-metal),
("38", "87.62", "Sr", "Strontium", colors.alkaline-earth),
("39", "88.906", "Y", "Yttrium", colors.metal),
("40", "91.224", "Zr", "Zirconium", colors.metal),
("41", "92.906", "Nb", "Niobium", colors.metal),
("42", "95.94", "Mo", "Molybdenum", colors.metal),
("43", "96", "Tc", "Technetium", colors.metal),
("44", "101.07", "Ru", "Ruthenium", colors.metal),
("45", "102.91", "Rh", "Rhodium", colors.metal),
("46", "106.42", "Pd", "Palladium", colors.metal),
("47", "107.87", "Ag", "Silver", colors.metal),
("48", "112.41", "Cd", "Cadmium", colors.metal),
("49", "114.82", "In", "Indium", colors.metal),
("50", "118.71", "Sn", "Tin", colors.metal),
("51", "121.76", "Sb", "Antimony", colors.metalloid),
("52", "127.6", "Te", "Tellurium", colors.metalloid),
("53", "126.9", "I", "Iodine", colors.halogen),
("54", "131.29", "Xe", "Xenon", colors.noble-gas),
),
// Period 6
(
("55", "132.91", "Cs", "Caesium", colors.alkali-metal),
("56", "137.33", "Ba", "Barium", colors.alkaline-earth),
("57-71", "", text("La-Lu", size: 28pt), "Lanthanide", colors.lanthanide),
("72", "178.49", "Hf", "Hafnium", colors.metal),
("73", "180.95", "Ta", "Tantalum", colors.metal),
("74", "183.84", "W", "Tungsten", colors.metal),
("75", "186.21", "Re", "Rhenium", colors.metal),
("76", "190.23", "Os", "Osmium", colors.metal),
("77", "192.22", "Ir", "Iridium", colors.metal),
("78", "195.08", "Pt", "Platinum", colors.metal),
("79", "196.97", "Au", "Gold", colors.metal),
("80", "200.59", "Hg", "Mercury", colors.metal),
("81", "204.38", "Tl", "Thallium", colors.metal),
("82", "207.2", "Pb", "Lead", colors.metal),
("83", "208.98", "Bi", "Bismuth", colors.metal),
("84", "209", "Po", "Polonium", colors.metalloid),
("85", "210", "At", "Astatine", colors.halogen),
("86", "222", "Rn", "Radon", colors.noble-gas),
),
// Period 7
(
("87", "223", "Fr", "Francium", colors.alkali-metal),
("88", "226", "Ra", "Radium", colors.alkaline-earth),
("89-103", "", text("Ac-Lr", size: 28pt), "Actinide", colors.lanthanide),
("104", "261", "Rf", "Rutherfordium", colors.metal),
("105", "262", "Db", "Dubnium", colors.metal),
("106", "266", "Sg", "Seaborgium", colors.metal),
("107", "264", "Bh", "Bohrium", colors.metal),
("108", "277", "Hs", "Hassium", colors.metal),
("109", "268", "Mt", "Meitnerium", colors.metal),
("110", "281", "Ds", "Darmstadtium", colors.metal),
("111", "280", "Rg", "Roentgenium", colors.metal),
("112", "285", "Cn", "Copernicium", colors.metal),
("113", "284", "Nh", "Nihonium", colors.metal),
("114", "289", "Fl", "Flerovium", colors.metal),
("115", "288", "Mc", "Moscovium", colors.metal),
("116", "293", "Lv", "Livermorium", colors.metal),
("117", "294", "Ts", "Tennessine", colors.halogen),
("118", "294", "Og", "Oganesson", colors.noble-gas),
),
)
// Lanthanide data
#let lanthanides = (
("57", "138.91", "La", "Lanthanum"),
("58", "140.12", "Ce", "Cerium"),
("59", "140.91", "Pr", "Praseodymium"),
("60", "144.24", "Nd", "Neodymium"),
("61", "145", "Pm", "Promethium"),
("62", "150.36", "Sm", "Samarium"),
("63", "151.96", "Eu", "Europium"),
("64", "157.25", "Gd", "Gadolinium"),
("65", "158.93", "Tb", "Terbium"),
("66", "162.50", "Dy", "Dysprosium"),
("67", "164.93", "Ho", "Holmium"),
("68", "167.26", "Er", "Erbium"),
("69", "168.93", "Tm", "Thulium"),
("70", "173.04", "Yb", "Ytterbium"),
("71", "174.97", "Lu", "Lutetium"),
)
// Actinide data
#let actinides = (
("89", "227", "Ac", "Actinium"),
("90", "232.04", "Th", "Thorium"),
("91", "231.04", "Pa", "Protactinium"),
("92", "238.03", "U", "Uranium"),
("93", "237", "Np", "Neptunium"),
("94", "244", "Pu", "Plutonium"),
("95", "243", "Am", "Americium"),
("96", "247", "Cm", "Curium"),
("97", "247", "Bk", "Berkelium"),
("98", "251", "Cf", "Californium"),
("99", "252", "Es", "Einsteinium"),
("100", "257", "Fm", "Fermium"),
("101", "258", "Md", "Mendelevium"),
("102", "259", "No", "Nobelium"),
("103", "262", "Lr", "Lawrencium"),
)
// Helper function to create an element box
#let element(number, mass, symbol, name, fill: white, text-color: black) = {
box(width: 3cm, height: 3cm, fill: fill, stroke: black, inset: 4pt)[
#set align(center)
#text(size: 18pt, weight: "bold")[#number #h(1fr) #mass]\
#v(1fr)
#text(size: 40pt, weight: "bold", fill: text-color)[#symbol]\
#v(1fr)
#text(size: 13pt)[#name]
]
}
// Helper function to create a synthetic element (gray text)
#let synthetic-element(number, mass, symbol, name, fill: white) = {
element(number, mass, symbol, name, fill: fill, text-color: colors.synthetic)
}
#canvas({
import draw: line, content, rect
let cell-size = 3.25 // Increased cell size
let start-x = 0
let start-y = 0
let lanthanide-gap = 2.5 // Gap before lanthanides/actinides
// Function to calculate element position
let pos(group, period) = {
let y-offset = if period > 7 { lanthanide-gap } else { 0 }
(
start-x + (group - 1) * cell-size,
start-y - (period - 1) * cell-size - y-offset,
)
}
// Function to calculate lanthanide/actinide position
let special-pos(num, is-actinide: false) = {
let row = if is-actinide { 9 } else { 8 }
let col = num - (if is-actinide { 89 } else { 57 }) + 3
let y-offset = lanthanide-gap
(
start-x + (col - 1) * cell-size,
start-y - (row - 1) * cell-size - y-offset,
)
}
// Draw main table elements
for period in range(1, elements.len() + 1) {
for group in range(1, 19) {
let data = elements.at(period - 1).at(group - 1)
if data != none {
if data.len() == 5 {
content(pos(group, period), element(..data.slice(0, 4), fill: data.at(4)))
} else {
content(pos(group, period), element(..data))
}
}
}
}
// Lanthanides
for (idx, data) in lanthanides.enumerate() {
content(special-pos(57 + idx), element(..data, fill: colors.lanthanide))
}
// Actinides
for (idx, data) in actinides.enumerate() {
content(
special-pos(89 + idx, is-actinide: true),
if idx <= 3 { element(..data, fill: colors.lanthanide) } else {
synthetic-element(..data, fill: colors.lanthanide)
},
)
}
// Title
content(
(7 * cell-size, 0.2 * cell-size),
text(size: 76pt, weight: "bold")[Periodic Table of Elements],
)
// Period labels
for period in range(1, 8) {
content(
(start-x - cell-size * 0.6, start-y - (period - 1) * cell-size),
text(size: 16pt, weight: "bold")[#period],
)
}
// Group labels
let groups = "IA IIA IIIB IVB VB VIB VIIB VIIIB VIIIB VIIIB IB IIB IIIA IVA VA VIA VIIA VIIIA".split(" ")
// Find first element in each column
for (num, label) in groups.enumerate(start: 1) {
let first_period = if num == 1 { 1 } else if num == 2 { 2 } else if num <= 12 { 4 } else { 2 }
let (x, y) = pos(num, first_period)
content(
(x, y + cell-size * 0.7),
box(width: 3cm)[
#set align(center)
#text(size: 14pt, weight: "bold")[#num #h(1fr) #label]
],
)
}
// Legend
let legend-start = (start-x - 0.5 * cell-size, start-y - 6.8 * cell-size)
let legend-items = (
("Alkali Metal", colors.alkali-metal),
("Alkaline Earth Metal", colors.alkaline-earth),
("Transition Metal", colors.metal),
("Metalloid", colors.metalloid),
("Nonmetal", colors.nonmetal),
("Halogen", colors.halogen),
("Noble Gas", colors.noble-gas),
("Lanthanide/Actinide", colors.lanthanide),
)
for (idx, (label, color)) in legend-items.enumerate() {
let y-offset = idx
rect(
(legend-start.at(0), legend-start.at(1) - y-offset),
(legend-start.at(0) + 0.8, legend-start.at(1) - y-offset - 0.8),
fill: color,
stroke: black,
)
content(
(legend-start.at(0) + 1, legend-start.at(1) - y-offset - 0.4),
text(size: 14pt)[#label],
anchor: "west",
)
}
// Element key
content(
(12, -4),
element("Z", "mass", text("Symbol", size: 22pt), "Name"),
)
content(
(16.5, -4),
text(size: 18pt)[
black: natural\
#text(fill: colors.synthetic)[gray: man-made]
],
)
})
