Fractal Dragon Curve

The Heighway dragon is a plane-filling fractal curve generated by the Lindenmayer system with axiom FX and rules X → X+YF+, Y → -FX-Y. A turtle on a square grid draws a segment for each F and turns on + / -.

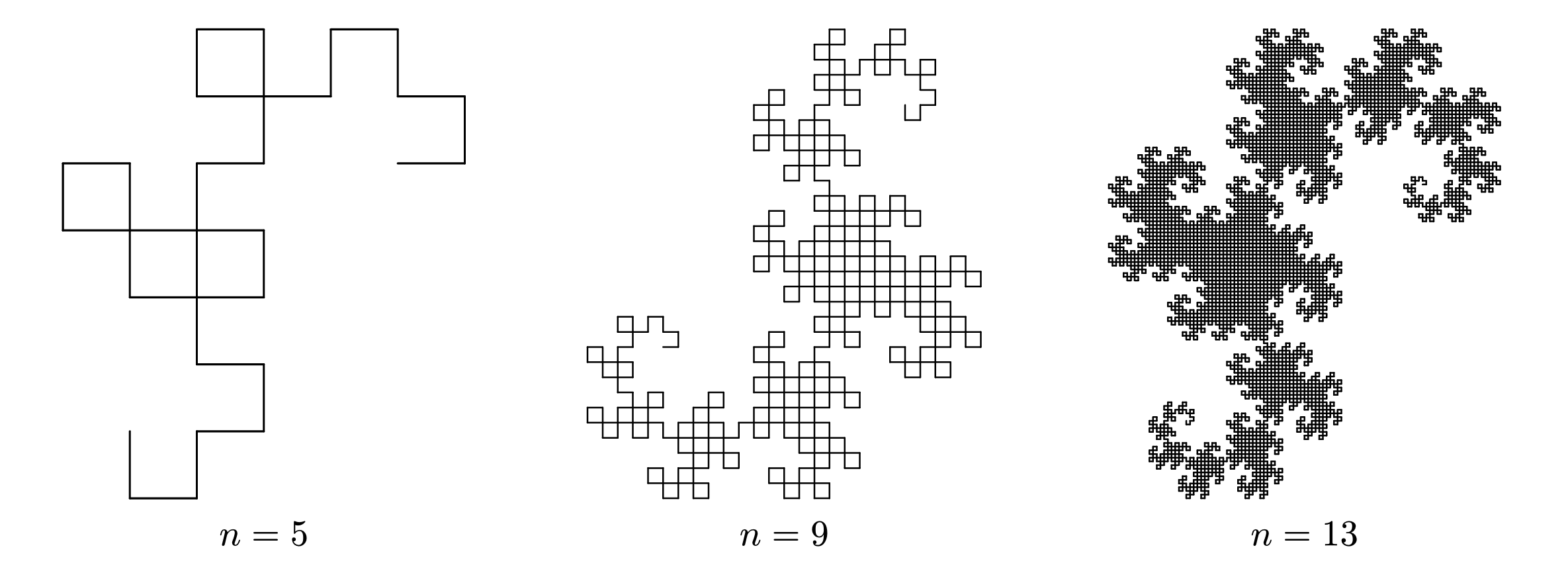

The figure shows three iteration orders (5, 9, and 13) of the same grammar.
