Thomson Scattering

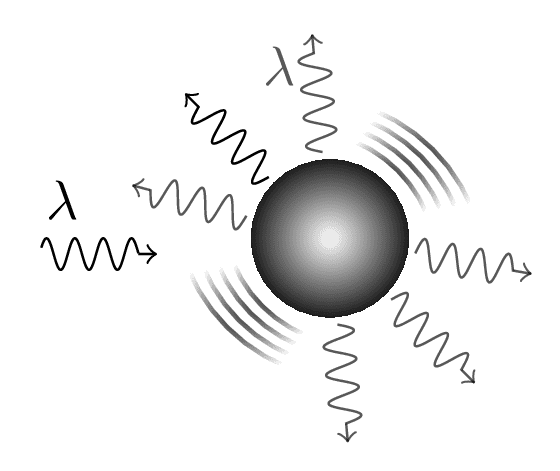

Classical elastic scattering of light by a free electron. The incident electric field drives the electron's oscillation, and the accelerated charge reradiates. A highlighted outgoing wave defines the scattering angle $\theta$ relative to the forward direction. Incident and scattered waves have the same wavelength and photon energy in the Thomson limit $h\nu \ll m_e c^2$ , where recoil is neglected. The gray rays indicate other possible emission directions schematically.

Download

PNG PDF SVG

Code

thomson-scattering.typ (81 lines)

#import "@preview/cetz:0.5.3": canvas, draw

#set page(width: auto, height: auto, margin: 12pt, fill: none)
#set text(font: "New Computer Modern", size: 12pt, fill: rgb("243247"))

#let incident_color = rgb("2563eb")
#let scattered_color = rgb("a85512")
#let electron_color = rgb("7454a3")
#let muted = rgb("5f6b7c")
#let wavelength = 0.42
#let scattering_angle = 35deg
#let arrow(color) = (end: "stealth", fill: color, stroke: none, length: 5pt, width: 3.5pt)

// All wave packets use the same wavelength; their length only changes the cycle count.
#let wave(start_distance, angle, cycles, color) = draw.scope({
  draw.translate((start_distance * calc.cos(angle), start_distance * calc.sin(angle)))
  draw.rotate(angle)
  let wave_length = cycles * wavelength
  let points = range(cycles * 48 + 1).map(idx => {
    let distance = idx / 48 * wavelength
    (distance, 0.10 * calc.sin(360deg * distance / wavelength))
  })
  draw.line(..points, stroke: color + 1pt)
  draw.line((wave_length, 0), (wave_length + 0.23, 0), stroke: color + 1pt, mark: arrow(color))
})

#canvas({
  draw.scope({
    draw.scale(1.4)

    // The gray rays suggest other emission directions without implying equal intensity.
    for angle in (145deg, 225deg, 310deg) {
      wave(0.55, angle, 2, rgb("c3cbd5"))
    }
    let forward-stroke = (paint: rgb("b5bfcc"), thickness: 0.6pt, dash: "dashed")
    draw.line((0.45, 0), (2.85, 0), stroke: forward-stroke, name: "forward")
    draw.content((rel: (0, -0.2), to: "forward.end"), text(fill: muted)[forward direction])

    wave(-3.1, 0deg, 5, incident_color)
    draw.content((-2.0, 0.48), text(fill: incident_color)[Incident wave])
    draw.content((-2.0, -0.43), text(fill: incident_color)[$lambda_"in"$])

    wave(0.55, scattering_angle, 5, scattered_color)
    draw.content((1.0, 1.68), text(fill: scattered_color)[Scattered wave])
    draw.content((2.62, 1.1), text(fill: scattered_color)[$lambda_"out"$])
    draw.arc(
      (0, 0),
      start: 0deg,
      stop: scattering_angle,
      anchor: "origin",
      radius: 1.1,
      stroke: scattered_color + 0.8pt,
      mark: arrow(scattered_color),
    )
    draw.content((1.35, 0.37), text(fill: scattered_color)[$theta$])

    let oscillation-mark = (start: "stealth", ..arrow(electron_color))
    draw.line((0, -0.48), (0, 0.48), stroke: electron_color + 1pt, mark: oscillation-mark)
    draw.circle((0, 0), radius: 0.27, fill: electron_color, stroke: none, name: "electron")
    draw.content("electron", text(fill: white)[$e^-$])
    draw.content((rel: (0, -1.08), to: "electron"), text(fill: electron_color)[Electron])
  })

  for (y, style, body) in (
    (3.7, (size: 16pt, weight: "bold"), [Thomson scattering]),
    (3.12, (size: 14pt), [Elastic scattering by a free electron]),
    (-2.32, (:), $lambda_"out" = lambda_"in" quad h nu_"out" = h nu_"in"$),
    (
      -3.0,
      (size: 14pt),
      [The electric field drives the electron; the accelerated charge reradiates.],
    ),
    (
      -3.6,
      (size: 14pt, fill: muted),
      [Classical limit: photon energy $h nu lt.double m_e c^2$; recoil is neglected.],
    ),
  ) {
    draw.content((0, y), text(..style, body))
  }
})
