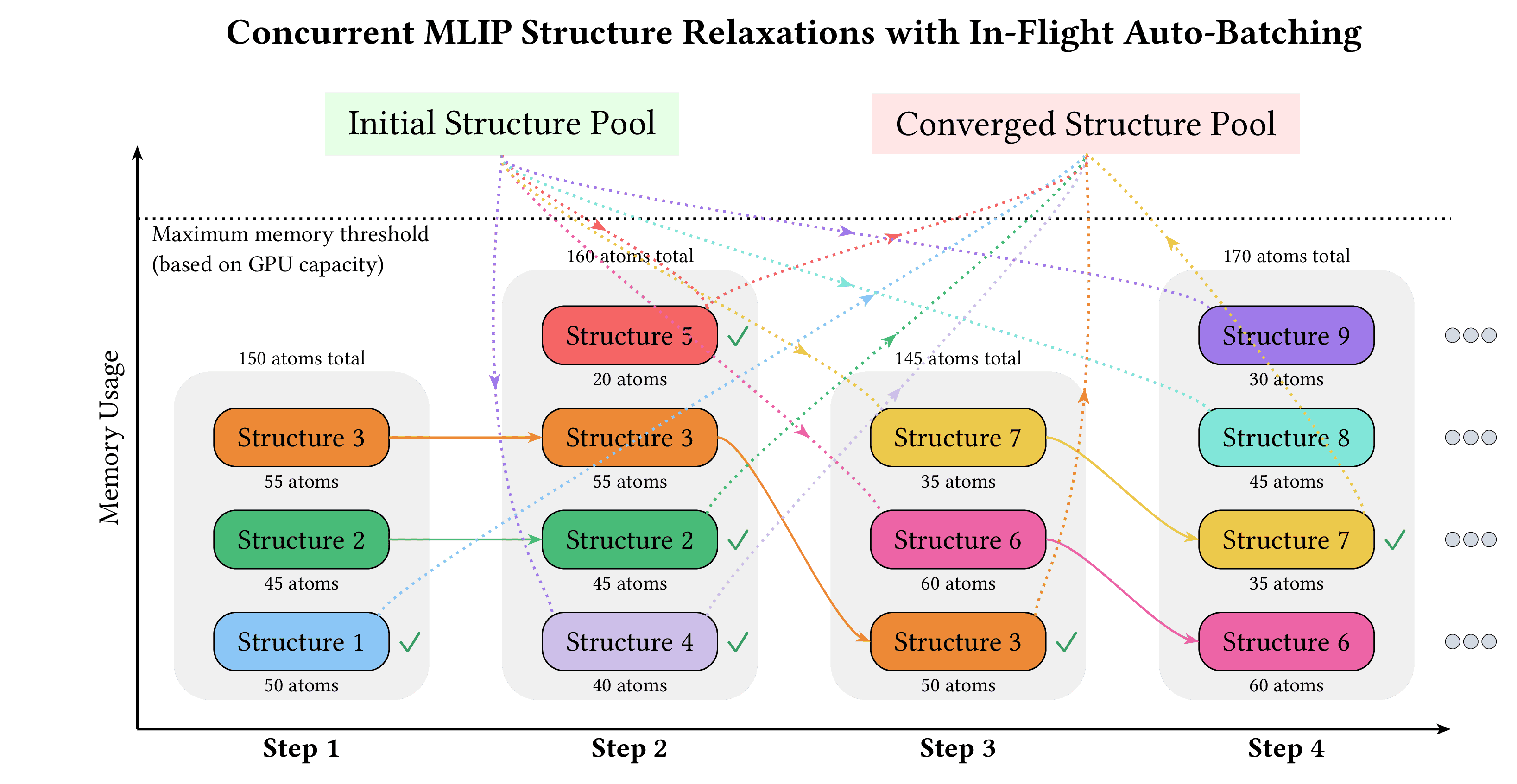

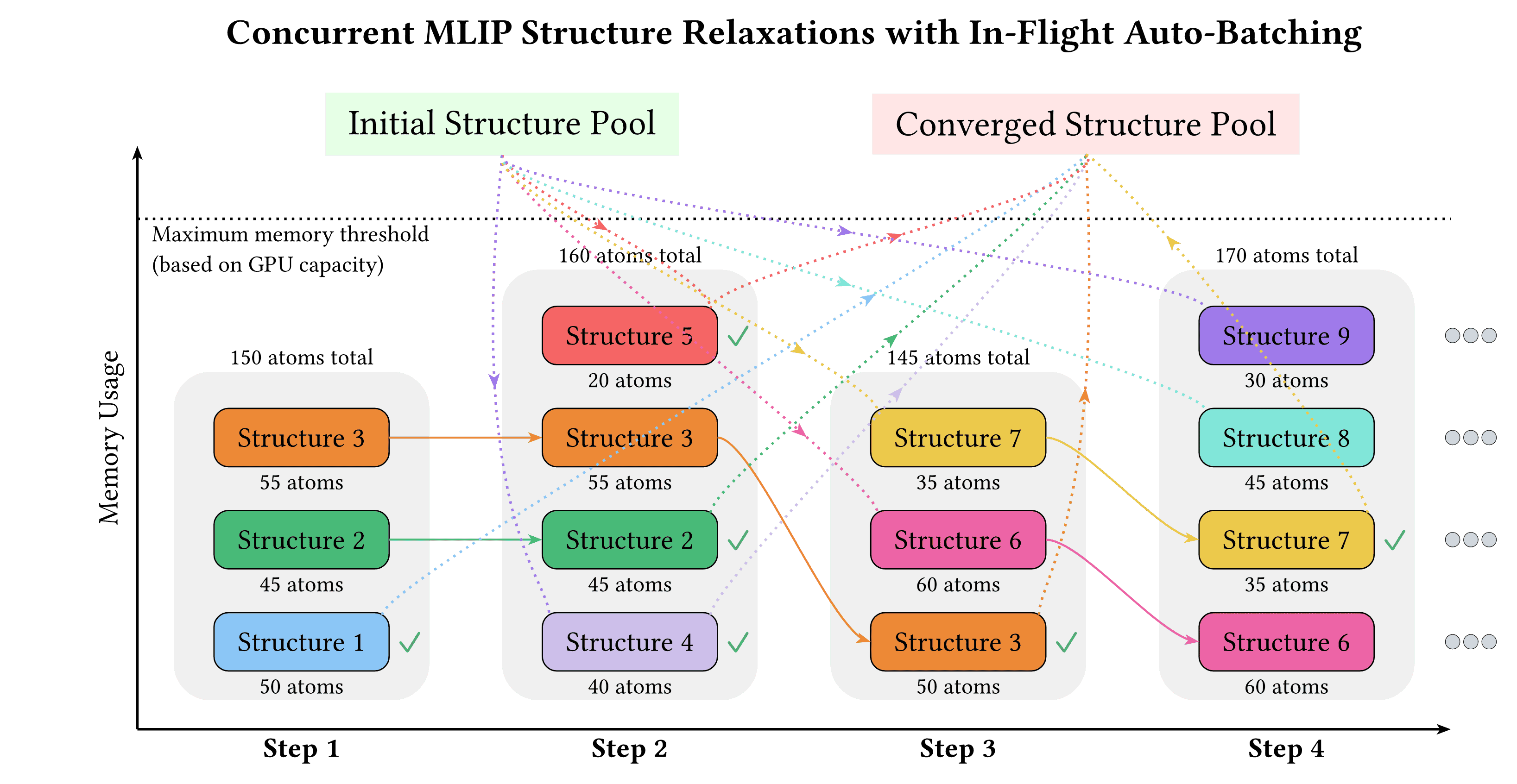

In-Flight Auto-Batcher
When relaxing atomic structures towards their ground state, each structure requires an a priori unknown number of ionic steps. In-flight auto-batching optimizes GPU utilization by dynamically replacing converged structures with new ones based on memory availability for efficient GPU utilization, especially when relaxing large numbers of structures with varying degrees of equilibrium distance.
- Dynamically replaces converged structures with new ones to maintain high GPU utilization
- Batch size (number of concurrent relaxations) varies based on memory requirements of individual structures (mainly determined by atom count and density [higher density = more edges in graph representation of structure, often with cubic scaling])
- Memory scaling can be configured based on
n_atomsorn_atoms×densitymetrics
For more details, see the TorchSim InFlightAutoBatcher documentation
Download
Code
Typst
in-flight-auto-batcher.typ (449 lines)
#import "@preview/cetz:0.3.4": canvas, draw
#import draw: line, content, rect, circle, bezier
#set page(width: auto, height: auto, margin: 8pt)
#canvas({
// Define styles and constants
let arrow_style = (mark: (end: "stealth", fill: black, scale: 0.5))
let plot_size = 18 // Width of the plot (increased from 14 to 18 to accommodate fourth step)
let plot_height = 8 // Height of the plot
let title_height = plot_height + 1.5
// Define standard structure dimensions
let struct_width = 2.4 // Standard width for all structures
let vert_spacing = 1.4 // Standard vertical spacing between structures
// Define step rectangle dimensions
let step_width = 3.5 // Standard width for all step rectangles
let step_padding = 0.3 // Additional vertical padding for step rectangles
let step_spacing = 1.0 // Horizontal spacing between step rectangles
let y_offset = 0.4 // Vertical offset from x-axis
// Calculate step positions
let step1_x = step_width / 2 + 0.5
let step2_x = step1_x + step_width + step_spacing
let step3_x = step2_x + step_width + step_spacing
let step4_x = step3_x + step_width + step_spacing
// Structure colors
let structure_colors = (
rgb("#8bc6f6"), // Blue
rgb("#48BB78"), // Green
rgb("#ED8936"), // Orange
rgb("#cdbfea"), // Purple
rgb("#F56565"), // Red
rgb("#ED64A6"), // Pink
rgb("#ECC94B"), // Yellow
rgb("#81E6D9"), // Teal
rgb("#9F7AEA"), // Purple 2
)
// Add title
content(
(plot_size / 2, title_height),
text(weight: "bold", size: 14pt)[Concurrent MLIP Structure Relaxations with In-Flight Auto-Batching],
name: "title",
)
// Add initial structure pool below title (left side)
content(
(plot_size / 3 - 1, title_height - 1.2),
text(size: 14pt)[Initial Structure Pool],
frame: "rect",
padding: (7pt, 9pt, 8pt),
stroke: none,
fill: rgb(230, 255, 230), // Light green for initial structures
name: "initial-pool",
)
// Add relaxed structure pool below title (right side)
content(
(2 * plot_size / 3 + 1, title_height - 1.2),
text(size: 14pt)[Converged Structure Pool],
frame: "rect",
padding: (7pt, 9pt, 4pt),
stroke: none,
fill: rgb(255, 230, 230), // Light red for relaxed structures
name: "relaxed-pool",
)
// Draw horizontal arrow for batch dimension
line(
(0, 0),
(plot_size, 0),
..arrow_style,
name: "x-axis",
)
// Draw vertical axis for MLIP batch relaxation
line(
(0, 0),
(0, plot_height),
..arrow_style,
name: "y-axis",
)
content(
(rel: (-.4, 0), to: "y-axis.mid"),
[#align(horizon, rotate(-90deg, [Memory Usage]))],
name: "y-label",
)
// Draw memory limit line
line(
(0, 7),
(plot_size, 7),
stroke: (dash: "dotted", thickness: 1pt),
name: "memory-limit",
)
content(
(rel: (0.2, -0.1), to: "memory-limit.start"),
text(size: 9pt)[Maximum memory threshold\ (based on GPU capacity)],
anchor: "north-west",
)
// Helper to draw a structure box
let draw_structure(x_pos, y_pos, color, label, atom_count, name_suffix: "", converged: false) = {
rect(
(x_pos - struct_width / 2, y_pos - 0.4),
(x_pos + struct_width / 2, y_pos + 0.4),
fill: color,
stroke: 0.5pt,
radius: 0.3,
name: "struct-" + label + name_suffix,
)
content(("struct-" + label + name_suffix), [Structure #label])
// Add atom count if provided
if atom_count != none {
content(
(rel: (0, -0.5), to: "struct-" + label + name_suffix),
text(size: 8pt)[#atom_count atoms],
anchor: "north",
)
}
// Add checkmark for converged structures
if converged {
content(
(rel: (0.1, 0), to: "struct-" + label + name_suffix + ".east"),
text(size: 12pt, fill: rgb("#38A169"))[✓],
anchor: "west",
)
}
}
// Define structure counts for each step
let step1_count = 3
let step2_count = 4
let step3_count = 3
let step4_count = 4
// Calculate heights for memory regions based on structure count
let calc_height(structure_count) = {
return structure_count * vert_spacing + step_padding
}
// Draw memory usage regions with dynamic heights and standardized widths
rect(
(step1_x - step_width / 2, y_offset),
(step1_x + step_width / 2, calc_height(step1_count) + y_offset),
fill: rgb(240, 240, 240),
stroke: none,
radius: 0.5,
name: "batch1",
)
content((rel: (0, 0.1), to: "batch1.north"), text(size: 8pt)[150 atoms total], anchor: "south")
rect(
(step2_x - step_width / 2, y_offset),
(step2_x + step_width / 2, calc_height(step2_count) + y_offset),
fill: rgb(240, 240, 240),
stroke: none,
radius: 0.5,
name: "batch2",
)
content((rel: (0, 0.1), to: "batch2.north"), text(size: 8pt)[160 atoms total], anchor: "south")
rect(
(step3_x - step_width / 2, y_offset),
(step3_x + step_width / 2, calc_height(step3_count) + y_offset),
fill: rgb(240, 240, 240),
stroke: none,
radius: 0.5,
name: "batch3",
)
content((rel: (0, 0.1), to: "batch3.north"), text(size: 8pt)[145 atoms total], anchor: "south")
rect(
(step4_x - step_width / 2, y_offset),
(step4_x + step_width / 2, calc_height(step4_count) + y_offset),
fill: rgb(240, 240, 240),
stroke: none,
radius: 0.5,
name: "batch4",
)
content((rel: (0, 0.1), to: "batch4.north"), text(size: 8pt)[170 atoms total], anchor: "south")
// Base y-position for all structures
let base_y = y_offset + 0.8
// Step 1: Initial batch (3 structures of different sizes)
draw_structure(step1_x, base_y, structure_colors.at(0), "1", 50, converged: true)
draw_structure(step1_x, base_y + vert_spacing, structure_colors.at(1), "2", 45)
draw_structure(step1_x, base_y + 2 * vert_spacing, structure_colors.at(2), "3", 55)
// Add step label
content(
(rel: (0, -0.7), to: "batch1.south"),
[*Step 1*],
name: "step1-label",
)
// Step 2: Structure 1 converged, replaced by 4, added structure 5 (smaller)
draw_structure(step2_x, base_y, structure_colors.at(3), "4", 40, converged: true)
draw_structure(step2_x, base_y + vert_spacing, structure_colors.at(1), "2", 45, name_suffix: "-2", converged: true)
draw_structure(step2_x, base_y + 2 * vert_spacing, structure_colors.at(2), "3", 55, name_suffix: "-2")
draw_structure(
step2_x,
base_y + 3 * vert_spacing,
structure_colors.at(4),
"5",
20,
converged: true,
) // Smaller structure fits in the batch
// Add step label
content(
(rel: (0, -0.7), to: "batch2.south"),
[*Step 2*],
name: "step2-label",
)
// Step 3: Structures 2, 4, 5 converged, only 3 continues with new structures
draw_structure(step3_x, base_y, structure_colors.at(2), "3", 50, name_suffix: "-3", converged: true)
draw_structure(step3_x, base_y + vert_spacing, structure_colors.at(5), "6", 60)
draw_structure(step3_x, base_y + 2 * vert_spacing, structure_colors.at(6), "7", 35)
// Add step label
content(
(rel: (0, -0.7), to: "batch3.south"),
[*Step 3*],
name: "step3-label",
)
// Step 4: Structure 3 converged, 6 and 7 continue, added 8 and 9 to maximize memory usage
draw_structure(step4_x, base_y, structure_colors.at(5), "6", 60, name_suffix: "-2")
draw_structure(step4_x, base_y + vert_spacing, structure_colors.at(6), "7", 35, name_suffix: "-2", converged: true)
draw_structure(step4_x, base_y + 2 * vert_spacing, structure_colors.at(7), "8", 45)
draw_structure(step4_x, base_y + 3 * vert_spacing, structure_colors.at(8), "9", 30)
// Add step label
content(
(rel: (0, -0.7), to: "batch4.south"),
[*Step 4*],
name: "step4-label",
)
// Add dots to indicate continuation at the end of step 4
for y_pos in (base_y, base_y + vert_spacing, base_y + 2 * vert_spacing, base_y + 3 * vert_spacing) {
for x_pos in range(3) {
circle(
(step4_x + 0.65 * step_width + x_pos * 0.25, y_pos),
radius: 0.1,
stroke: 0.2pt,
fill: rgb("#CBD5E0"),
)
}
}
// Draw curved transition arrows between steps
// Step 1 to Step 2
let transition_style = (stroke: rgb("#718096") + 0.8pt, mark: (end: "stealth", fill: rgb("#718096"), scale: 0.6))
// Structure 2 continuing
bezier(
(rel: (0, 0), to: "struct-2.east"),
(rel: (0, 0), to: "struct-2-2.west"),
(rel: (0.5, 0), to: "struct-2.east"),
(rel: (-0.5, 0), to: "struct-2-2.west"),
stroke: structure_colors.at(1) + 0.8pt,
mark: (end: "stealth", fill: structure_colors.at(1), scale: 0.6),
name: "s2-continuing",
)
// Structure 3 continuing
bezier(
(rel: (0, 0), to: "struct-3.east"),
(rel: (0, 0), to: "struct-3-2.west"),
(rel: (0.5, 0), to: "struct-3.east"),
(rel: (-0.5, 0), to: "struct-3-2.west"),
stroke: structure_colors.at(2) + 0.8pt,
mark: (end: "stealth", fill: structure_colors.at(2), scale: 0.6),
name: "s3-continuing",
)
// Structure 1 converged - to relaxed pool (blue structure)
bezier(
(rel: (0, 0), to: "struct-1.north-east"),
(rel: (0, 0), to: "relaxed-pool.south"),
(rel: (0, 0.5), to: "struct-1.north-east"),
(rel: (-0.25, -0.5), to: "relaxed-pool.south"),
stroke: (dash: "dotted", paint: structure_colors.at(0)),
mark: (pos: 30%, end: "stealth", fill: structure_colors.at(0), scale: 0.6, shorten-to: none),
name: "s1-converged",
)
// New structure 4 allocated from initial pool
bezier(
(rel: (0, 0), to: "initial-pool.south"),
(rel: (0, 0), to: "struct-4.north-west"),
(rel: (-0.5, -5), to: "initial-pool.south"),
(rel: (0, 0.5), to: "struct-4.north-west"),
stroke: (dash: "dotted", paint: rgb("#9F7AEA")),
mark: (pos: 50%, end: "stealth", fill: rgb("#9F7AEA"), scale: 0.6, shorten-to: none),
name: "s4-new",
)
// New structure 5 allocated from initial pool
bezier(
(rel: (0, 0), to: "initial-pool.south"),
(rel: (0, 0), to: "struct-5.north-east"),
(rel: (0.15, -0.5), to: "initial-pool.south"),
(rel: (0, 0.5), to: "struct-5.north-east"),
stroke: (dash: "dotted", paint: rgb("#F56565")),
mark: (pos: 50%, end: "stealth", fill: rgb("#F56565"), scale: 0.6, shorten-to: none),
name: "s5-new",
)
// Step 2 to Step 3 transitions
// Structure 3 continuing
bezier(
(rel: (0, 0), to: "struct-3-2.east"),
(rel: (0, 0), to: "struct-3-3.west"),
(rel: (0.5, 0), to: "struct-3-2.east"),
(rel: (-0.5, 0), to: "struct-3-3.west"),
stroke: structure_colors.at(2) + 0.8pt,
mark: (end: "stealth", fill: structure_colors.at(2), scale: 0.6),
name: "s3-continuing-2",
)
// Structures 2, 4, 5 converged - to relaxed pool (with matching colors)
bezier(
(rel: (0, 0), to: "struct-2-2.north-east"),
(rel: (0, 0), to: "relaxed-pool.south"),
(rel: (0, 0.5), to: "struct-2-2.north-east"),
(rel: (0, -0.5), to: "relaxed-pool.south"),
stroke: (dash: "dotted", paint: structure_colors.at(1)),
mark: (pos: 50%, end: "stealth", fill: structure_colors.at(1), scale: 0.6, shorten-to: none),
name: "s2-converged",
)
bezier(
(rel: (0, 0), to: "struct-4.north-east"),
(rel: (0, 0), to: "relaxed-pool.south"),
(rel: (0, 0.5), to: "struct-4.north-east"),
(rel: (0.25, -0.5), to: "relaxed-pool.south"),
stroke: (dash: "dotted", paint: structure_colors.at(3)),
mark: (pos: 50%, end: "stealth", fill: structure_colors.at(3), scale: 0.6, shorten-to: none),
name: "s4-converged",
)
bezier(
(rel: (0, 0), to: "struct-5.north-east"),
(rel: (0, 0), to: "relaxed-pool.south"),
(rel: (0, 0.5), to: "struct-5.north-east"),
(rel: (0.5, -0.5), to: "relaxed-pool.south"),
stroke: (dash: "dotted", paint: structure_colors.at(4)),
mark: (pos: 50%, end: "stealth", fill: structure_colors.at(4), scale: 0.6, shorten-to: none),
name: "s5-converged",
)
// New structures 6 and 7 allocated from initial pool
bezier(
(rel: (0, 0), to: "initial-pool.south"),
(rel: (0, 0), to: "struct-6.north-west"),
(rel: (-0.15, -0.5), to: "initial-pool.south"),
(rel: (0, 0.5), to: "struct-6.north-west"),
stroke: (dash: "dotted", paint: rgb("#ED64A6")),
mark: (pos: 20%, end: "stealth", fill: rgb("#ED64A6"), scale: 0.6, shorten-to: none),
name: "s6-new",
)
bezier(
(rel: (0, 0), to: "initial-pool.south"),
(rel: (0, 0), to: "struct-7.north-west"),
(rel: (-0.3, -0.5), to: "initial-pool.south"),
(rel: (0, 0.5), to: "struct-7.north-west"),
stroke: (dash: "dotted", paint: rgb("#ECC94B")),
mark: (pos: 20%, end: "stealth", fill: rgb("#ECC94B"), scale: 0.6, shorten-to: none),
name: "s7-new",
)
// Step 3 to Step 4 transitions
// Structure 6 continuing
bezier(
(rel: (0, 0), to: "struct-6.east"),
(rel: (0, 0), to: "struct-6-2.west"),
(rel: (0.5, 0), to: "struct-6.east"),
(rel: (-0.5, 0), to: "struct-6-2.west"),
stroke: structure_colors.at(5) + 0.8pt,
mark: (end: "stealth", fill: structure_colors.at(5), scale: 0.6),
name: "s6-continuing",
)
// Structure 7 continuing
bezier(
(rel: (0, 0), to: "struct-7.east"),
(rel: (0, 0), to: "struct-7-2.west"),
(rel: (0.5, 0), to: "struct-7.east"),
(rel: (-0.5, 0), to: "struct-7-2.west"),
stroke: structure_colors.at(6) + 0.8pt,
mark: (end: "stealth", fill: structure_colors.at(6), scale: 0.6),
name: "s7-continuing",
)
// Structure 3 converged - to relaxed pool
bezier(
(rel: (0, 0), to: "struct-3-3.north-east"),
(rel: (0, 0), to: "relaxed-pool.south"),
(rel: (0, 0.5), to: "struct-3-3.north-east"),
(rel: (0.25, -5), to: "relaxed-pool.south"),
stroke: (dash: "dotted", paint: structure_colors.at(2)),
mark: (pos: 50%, end: "stealth", fill: structure_colors.at(2), scale: 0.6, shorten-to: none),
name: "s3-converged",
)
// New structures 8 and 9 allocated from initial pool
bezier(
(rel: (0, 0), to: "initial-pool.south"),
(rel: (0, 0), to: "struct-8.north-west"),
(rel: (-0.4, -0.5), to: "initial-pool.south"),
(rel: (0, 0.5), to: "struct-8.north-west"),
stroke: (dash: "dotted", paint: rgb("#81E6D9")),
mark: (pos: 50%, end: "stealth", fill: rgb("#81E6D9"), scale: 0.6, shorten-to: none),
name: "s8-new",
)
bezier(
(rel: (0, 0), to: "initial-pool.south"),
(rel: (0, 0), to: "struct-9.north-west"),
(rel: (-0.25, -0.5), to: "initial-pool.south"),
(rel: (0, 0.5), to: "struct-9.north-west"),
stroke: (dash: "dotted", paint: rgb("#9F7AEA")),
mark: (pos: 50%, end: "stealth", fill: rgb("#9F7AEA"), scale: 0.6, shorten-to: none),
name: "s9-new",
)
// Show convergence of structure 7 in step 4 with matching color
bezier(
(rel: (0, 0), to: "struct-7-2.north-east"),
(rel: (0, 0), to: "relaxed-pool.south"),
(rel: (0, 0.5), to: "struct-7-2.north-east"),
(rel: (0.75, -0.5), to: "relaxed-pool.south"),
stroke: (dash: "dotted", paint: structure_colors.at(6)),
mark: (pos: 25%, end: "stealth", fill: structure_colors.at(6), scale: 0.6, shorten-to: none),
name: "s7-2-converged",
)
})
